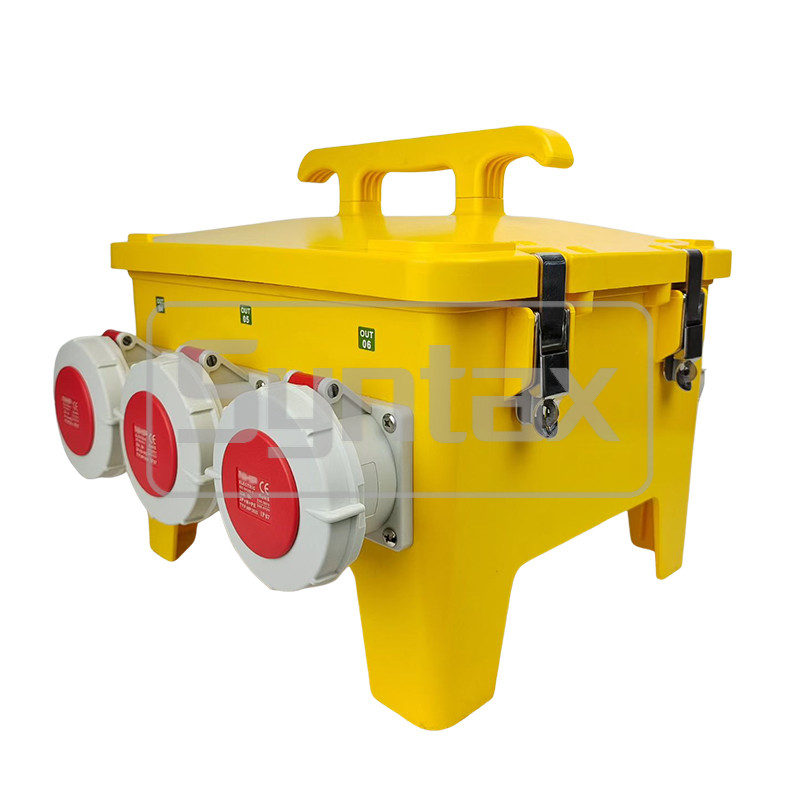

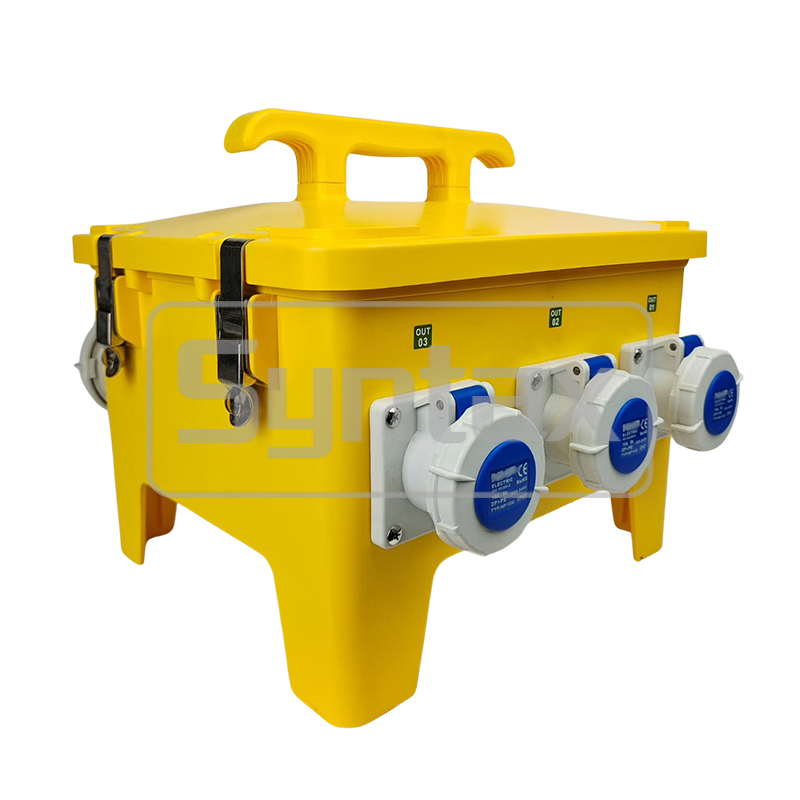

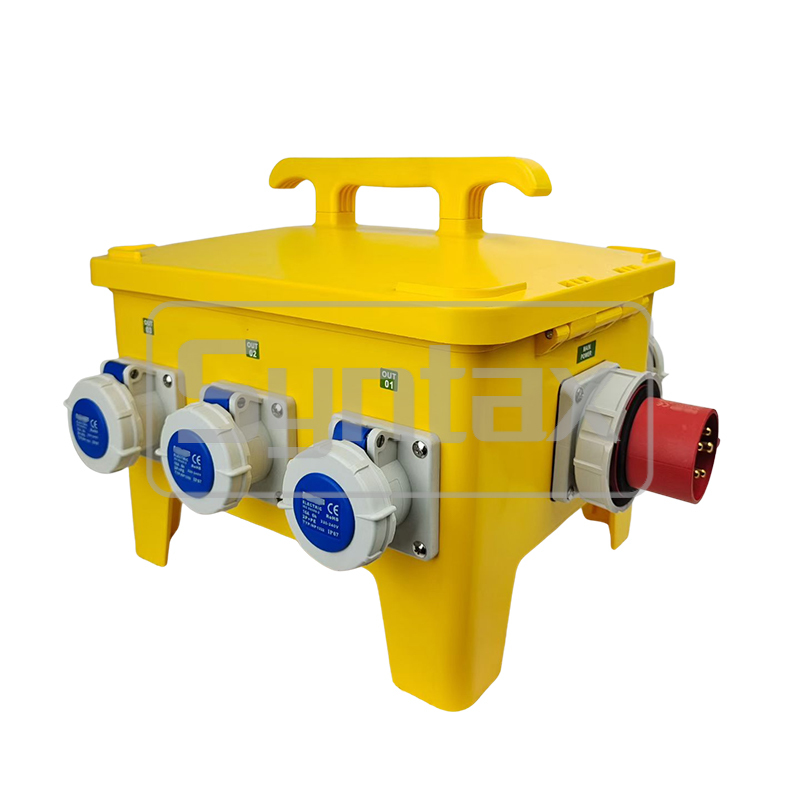

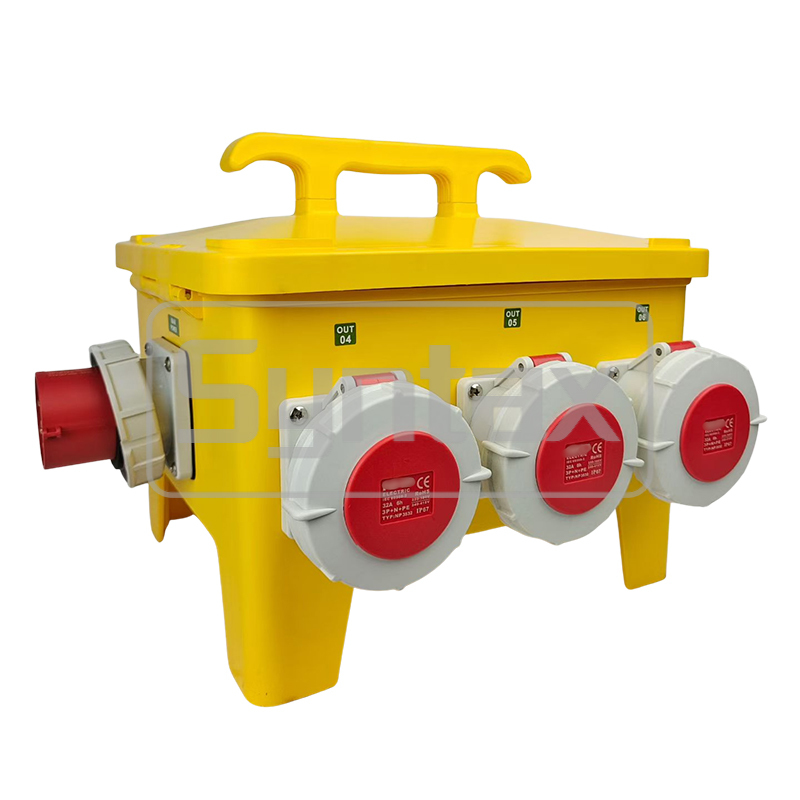

IP67 Waterproof Portable Power Distribution Board 63A/5P with Polycarbonate Resin Construction

Informação Básica

Lugar de origem:	China
Marca:	Syntax
Certificação:	UL
Número do modelo:	MP24

Quantidade de ordem mínima:	1 conjunto
Detalhes da embalagem:	Embalado em caixas de papel
Tempo de entrega:	15 dias úteis
Termos de pagamento:	L/C, T/T, Western Union
Habilidade da fonte:	3000 conjuntos/mês

Melhor preço contacto

Informação detalhada

Material:	PC (Resina de policarbonato, o melhor material de plástico)	Poloneses:	24 maneiras
Dimensão:	370340330mm	Taxa de proteção da PI:	IP67 à prova d'água
Cor:	Amarelo
Destacar:	IP67 waterproof electrical spider box , 63A 5P portable power distribution board , polycarbonate resin construction spider box

Descrição de produto

Syntax MP24 IP67 Waterproof Portable Power Distribution Boards 63A/5P With 1.0m Rubber Cable Residual Protected 37*34*33CM

Professional IP67 waterproof portable power distribution board designed for demanding industrial applications with comprehensive safety protection.

Technical Specifications

Attribute	Value
Box	MP24 Portable Distribution Box IP67
Color	Black
Dimension of Box	370340330mm

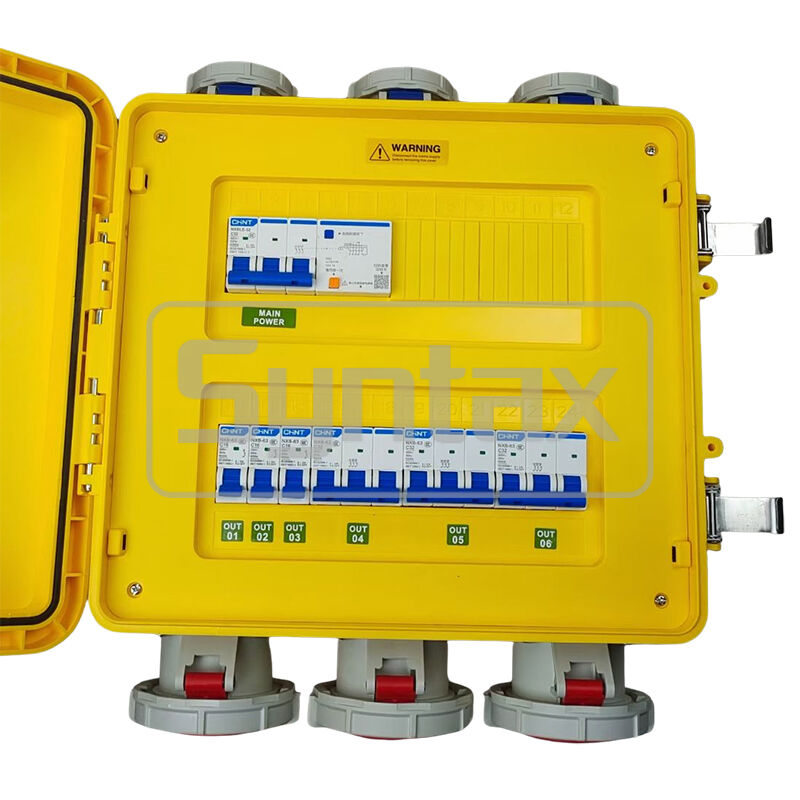

Incoming Main Switch	1 * 5P 63A 400V IP67 Plug with 1.0m 516mm² Flexible Rubber Cable, protected by 1 4P 63A 30mA RCCB
Outgoing Sockets 1-3 Breakers	3 * 5P 32A 400V IP67 Panel Mounted Sockets, protected by 3 * 3P 32A MCBs
Outgoing Sockets 4-6 Breakers	3 * 3P 16A 220V IP44 Panel Mounted Sockets, protected by 3 * 1P 16A MCBs
Brands	Distribution Box by Syntax; Industrial Plugs & Sockets by PowerSyntax; Breakers by CHINT

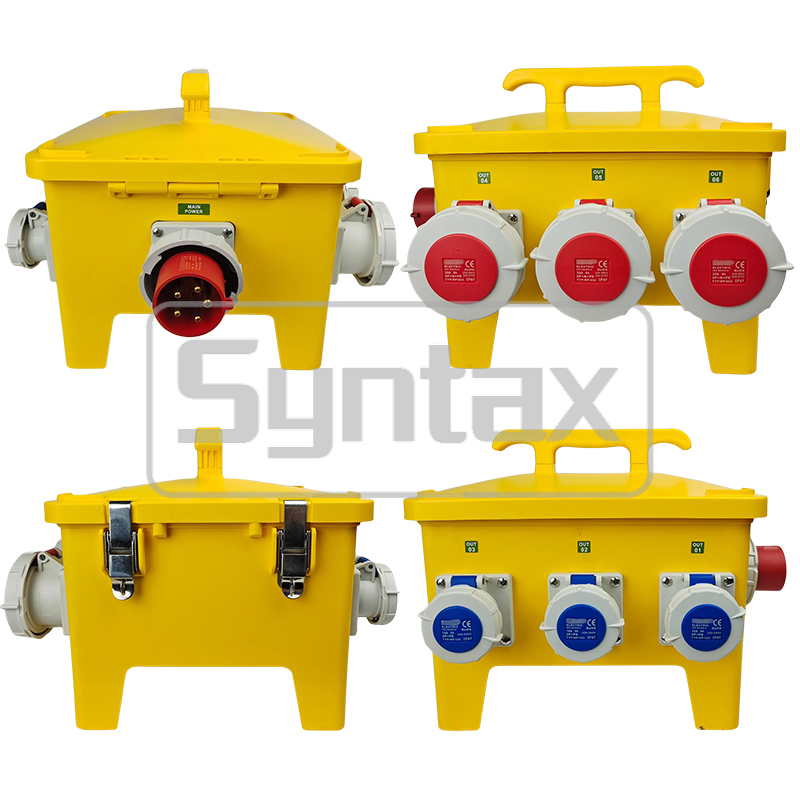

Product Drawings

Key Features

Designed based on EN 60439-4, IEC 60529 standards
Waterproof and shockproof design with IP67 rating
Available in Yellow or Black colors
Material: PC (Polycarbonate Resin - premium plastic material)

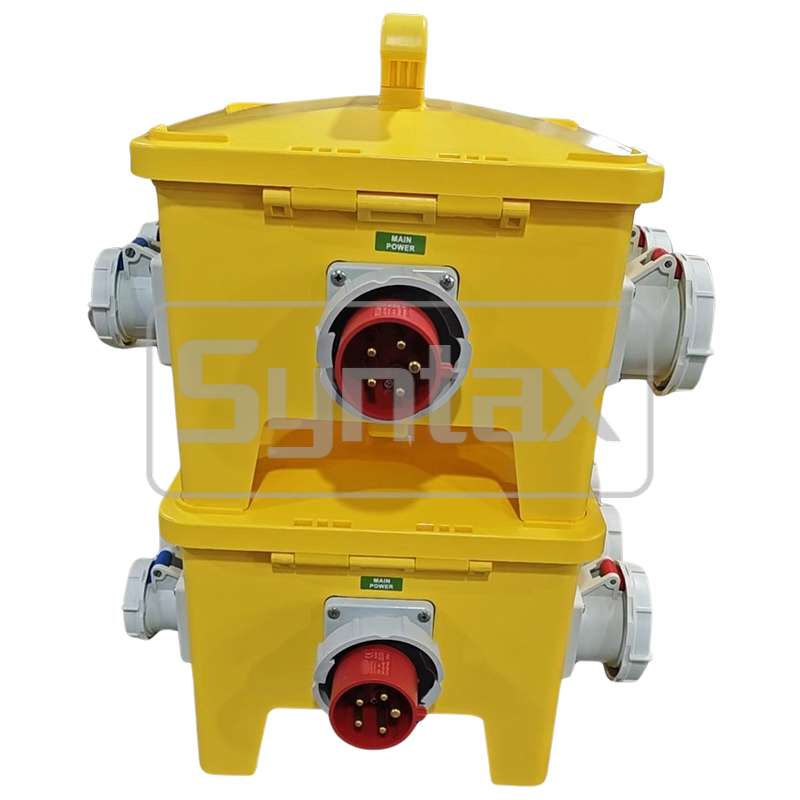

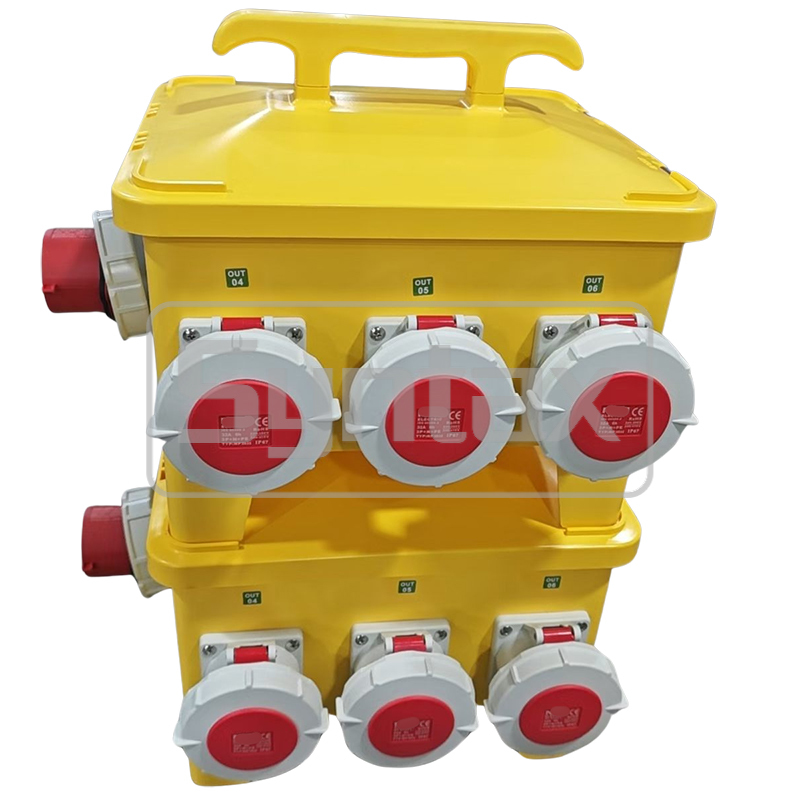

Stackable design for easier storage and daisy chaining
Operating Temperature: -20℃ to +75℃
Dimension: 370mm * 340mm * 330mm

Product Advantages

Quick assembly and dismantling
Safe and reliable connections
Reusability of all components
Suitable for indoor and outdoor use
Robust and durable construction
Easy handling and system management
Integrated feet for secure stacking
24 Months Warranty on all parts and manufacturing defects

Detailed Specification

This CEE standard portable power distribution board is rated 63 AMP, 400VAC, IP67 Waterproof for use at Live Events, Sporting Events, Film & TV applications. The incoming features a 63A/5P 400V IP67 Plug with 1.0 meters flexible 5*16mm² rubber cable, protected by a 4P 63A 30mA RCD. Outgoing sockets include 3 * 32A/5P 400V IP67 panel mounted sockets protected by 3 * 3P 32A MCBs, and 3 * 16A/3P 220V IP67 sockets protected by 3 * 1P 16A MCBs. All industrial plugs and sockets are from PowerSyntax brand, while breakers are from CHINT brand. The box is constructed from PC material with IP67 waterproof rating, making it ideal for stage events. Custom power distribution boxes can be built to order.

Applications

Tunnel construction and drilling rigs
Gravel pits, quarries, and strip mining
Marine, railway, and military applications
Industrial and construction sites
Event technology and large-scale events
Chemical plants and airports
Container terminals and harbor crane connections
Urban rail transit and nuclear power stations
Wind power stations, ports, docks, and airports
Metal processing plants and automotive works
4G/5G communication equipment and stations
Automated production lines for electronics and food
Concerts, stadiums, and presentation venues
Hospitals, schools, banks, and shopping malls
Electric vehicle charging systems

Custom Solutions

OEM and ODM services are available. If standard solutions do not meet your application requirements, customer-specific solutions can be developed upon request.
