Casa > Produtos> Distribuição de poder feita sob encomenda> Syntax CX3 Wall Mounted Distribution Box 63AMP Three Phase IP65 Waterproof Made in PC Material

Syntax CX3 Wall Mounted Distribution Box 63AMP Three Phase IP65 Waterproof Made in PC Material

Syntax CX3 Wall Mounted Distribution Box 63AMP Three Phase IP65 Waterproof Made in PC Material
Syntax CX3 Wall Mounted Distribution Box 63AMP Three Phase IP65 Waterproof Made in PC Material Syntax CX3 Wall Mounted Distribution Box 63AMP Three Phase IP65 Waterproof Made in PC Material Syntax CX3 Wall Mounted Distribution Box 63AMP Three Phase IP65 Waterproof Made in PC Material Syntax CX3 Wall Mounted Distribution Box 63AMP Three Phase IP65 Waterproof Made in PC Material Syntax CX3 Wall Mounted Distribution Box 63AMP Three Phase IP65 Waterproof Made in PC Material Syntax CX3 Wall Mounted Distribution Box 63AMP Three Phase IP65 Waterproof Made in PC Material Syntax CX3 Wall Mounted Distribution Box 63AMP Three Phase IP65 Waterproof Made in PC Material
Informação Básica
Lugar de origem: China
Marca: Syntax
Certificação: EN 60309, IEC 60529, SAA
Número do modelo: CX3
Quantidade de ordem mínima: 1 conjunto
Detalhes da embalagem: Embalado em caixas de papel
Tempo de entrega: 15 dias úteis
Termos de pagamento: L/C, T/T, Western Union
Habilidade da fonte: 3000 conjuntos/mês
Melhor preço contacto
Informação detalhada
Material: PC (Resina de policarbonato, o melhor material de plástico) Dimensão: 280mm*380mm*155mm
Taxa de proteção da PI: IP65 à prova d'água Cor: cinza elétrico
Destacar:

63A distro box

,

power distro

,

wall mounted distribution board

Descrição de produto

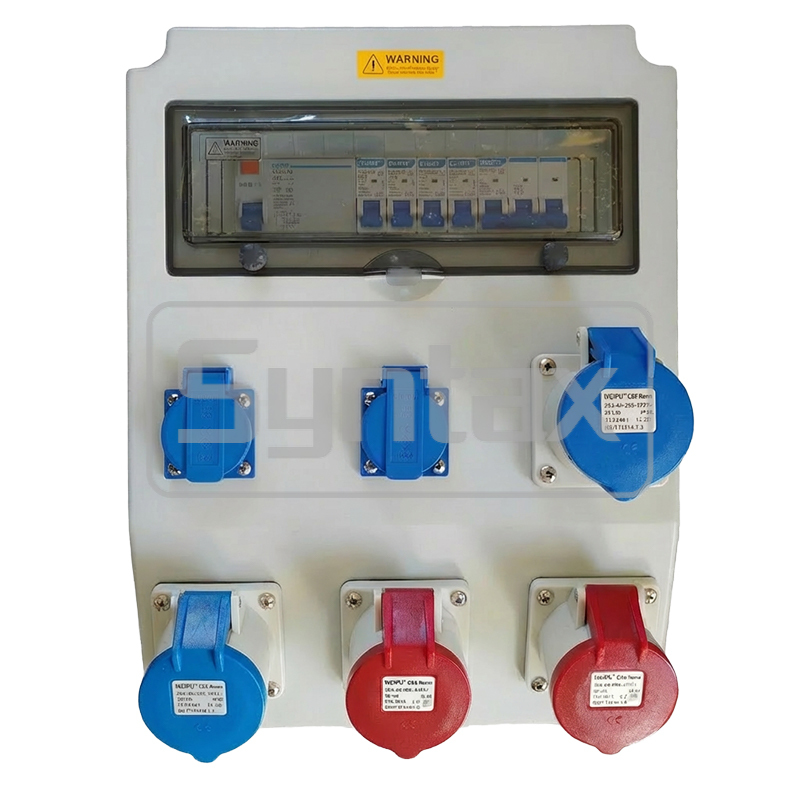

Syntax CX3 Wall Mounted Distribution Box
63AMP Three Phase PC Electric Grey Temporary Stage Box 280×380×155mm
Technical Specifications
Attribute Value
Box Model CX3 Wall Mounted Distribution Box IP65
Color Electric Grey
Dimensions 280 × 380 × 155 mm

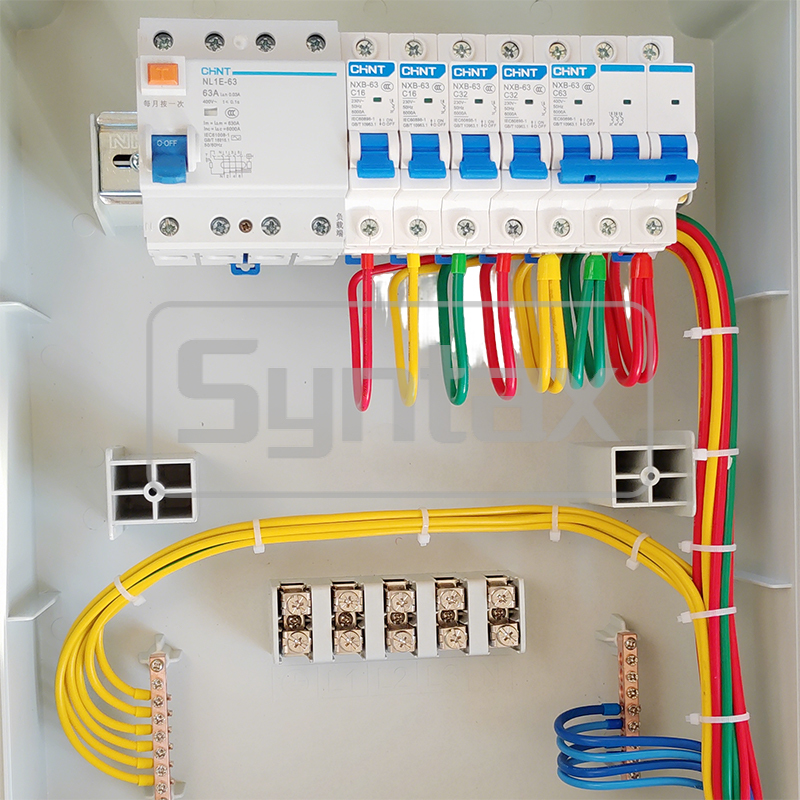

Incoming Main Switch Direct connect through cable gland at top/bottom, protected by 1 × 4P 63A 30mA RCD
Outgoing 1 Breaker 2 × 4P 32A 400V IP44 Panel Mounted Sockets, protected by 1 × 3P 63A MCB
Outgoing 2 Breaker 2 × 3P 32A 220V IP44 Panel Mounted Sockets, protected by 2 × 1P 32A MCBs
Outgoing 3 Breaker 2 × 2P+E 16A 220V IP44 Panel Mounted Sockets, protected by 2 × 1P 16A MCBs
Brands Distribution Box by Syntax; Industrial Plugs & Sockets by Weipu; Breakers by CHINT
Product Drawings
Syntax CX3 Wall Mounted Distribution Box 63AMP Three Phase IP65 Waterproof Made in PC Material 0 Syntax CX3 Wall Mounted Distribution Box 63AMP Three Phase IP65 Waterproof Made in PC Material 1
Features & Benefits
  • Designed to EN 60309, IEC 60529 standards
  • Waterproof and shockproof design with IP65 rating
  • Electric Grey color with custom color options available
  • Constructed from high-quality PC (Polycarbonate Resin) material
  • Wall mounted or can be fitted with top handle
  • Operating temperature range: -20℃ to +75℃
  • Compact dimensions: 280mm × 380mm × 155mm
Key Advantages
  • Quick assembly and dismantling
  • Safe and reliable connections
  • Reusable components
  • Suitable for indoor and outdoor applications
  • Robust construction for demanding environments
  • Easy handling and system integration
  • 24-month warranty on all parts and manufacturing defects
Applications
This distribution box is ideal for various industrial and commercial applications including:
  • Tunnel construction and drilling rigs
  • Marine, railway, and military applications
  • Industrial sites and construction projects
  • Event technology and large-scale events
  • Airports, quarries, and container terminals
  • Power supply for market places and public spaces
  • Urban infrastructure and utility projects
Custom Solutions
We offer customized solutions for applications where standard products don't meet specific requirements. Contact us for tailored power distribution solutions.
About Syntax Power Distribution
Zhejiang Hyper Electrical Supplies manufactures a comprehensive range of portable power distribution products under the "Syntax" brand. Our distribution boxes feature cutting-edge technology, professional manufacturing, and are available from 16 Amp up to 630 Amp capacities.
