Syntax CX4 Wall Mounted Distribution Box 63AMP Three Phase Four Wire with IP65 Waterproof Mennekes Sockets & RJ45 Network Interface

Syntax CX4 Wall Mounted Distribution Box 63AMP Three Phase Four Wire with IP65 Waterproof Mennekes Sockets & RJ45 Network Interface
Syntax CX4 Wall Mounted Distribution Box 63AMP Three Phase Four Wire with IP65 Waterproof Mennekes Sockets & RJ45 Network Interface Syntax CX4 Wall Mounted Distribution Box 63AMP Three Phase Four Wire with IP65 Waterproof Mennekes Sockets & RJ45 Network Interface Syntax CX4 Wall Mounted Distribution Box 63AMP Three Phase Four Wire with IP65 Waterproof Mennekes Sockets & RJ45 Network Interface
Informação Básica
Lugar de origem: China
Marca: Syntax
Certificação: EN 60309, IEC 60529, SAA
Número do modelo: CX4
Quantidade de ordem mínima: 1 conjunto
Detalhes da embalagem: Embalado em caixas de papel
Tempo de entrega: 15 dias úteis
Termos de pagamento: L/C, T/T, Western Union
Habilidade da fonte: 3000 conjuntos/mês
Melhor preço contacto
Informação detalhada
Material: PC (Resina de policarbonato, o melhor material de plástico) Dimensão: 330mm*530mm*175mm
Taxa de proteção da PI: IP65 à prova d'água Cor: cinza elétrico
Destacar:

63A 3 Phase Distribution Board

,

63amp power distribution box

,

Distribution box ip65

Descrição de produto

Syntax CX4 Wall Mounted Distribution Box
63AMP Three Phase Four Wire with Mennekes Sockets & RJ45 Network Interface - 330*530*175mm
Technical Specifications
Attribute Value
Box Model CX4 Wall Mounted Distribution Box IP65
Color Electric Grey
Dimensions 330 * 530 * 175 mm

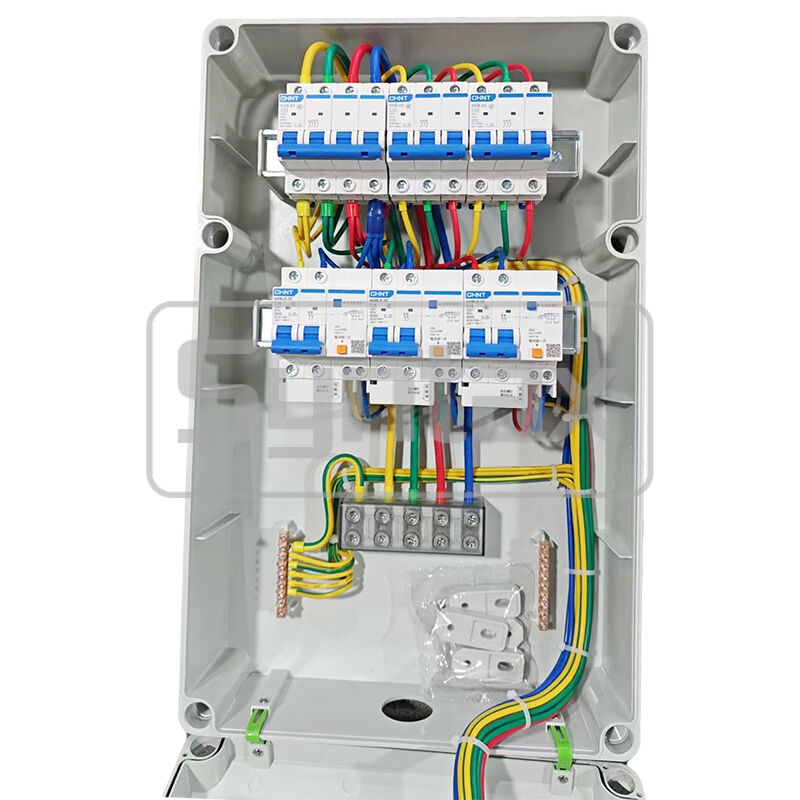

Incoming Main Switch Direct connect through cable gland into built-in terminals at bottom, protected by 1 * 4P 63A MCB

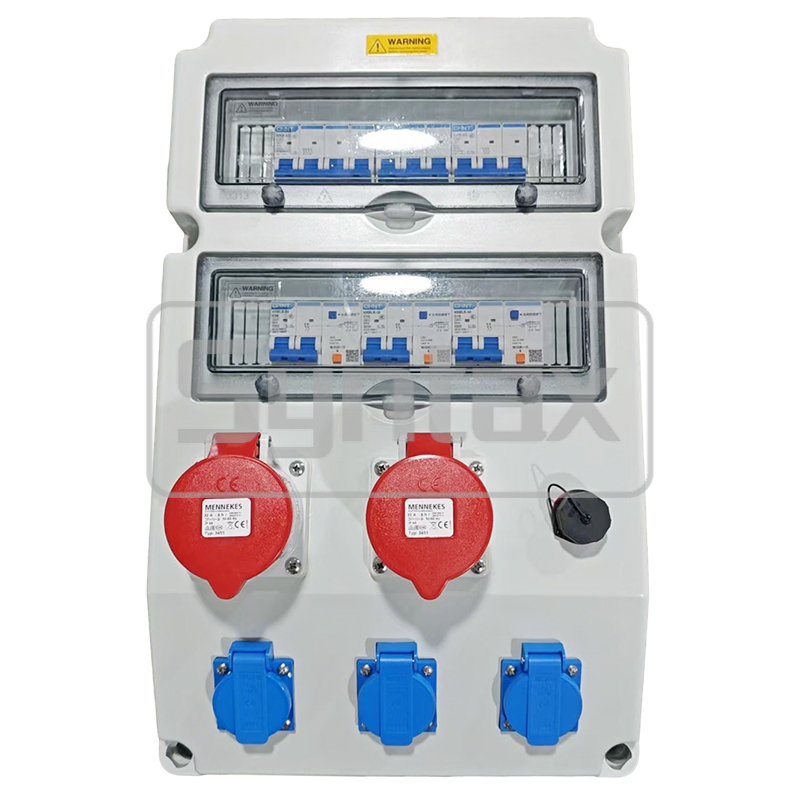

Outgoing 1 2 * 5P 32A 400V IP44 Panel Mounted Sockets, protected by 2 * 3P 32A MCBs
Outgoing 2 3 * 2P+E 16A 220V IP44 Schuko Sockets, protected by 3 * 2P 16A 30mA RCBOs
Outgoing 3 1 * RJ45 Network Interface Waterproof, without protection
Component Brands Distribution Box by Syntax; Industrial Plugs & Sockets by Mennekes; Breakers by CHINT
Technical Drawings
Syntax CX4 Wall Mounted Distribution Box 63AMP Three Phase Four Wire with IP65 Waterproof Mennekes Sockets & RJ45 Network Interface 0 Syntax CX4 Wall Mounted Distribution Box 63AMP Three Phase Four Wire with IP65 Waterproof Mennekes Sockets & RJ45 Network Interface 1
Features & Benefits
  • Designed to EN 60309 and IEC 60529 standards
  • Waterproof and shockproof design with IP65 rating
  • Electric Grey color with custom color options available
  • Constructed from high-quality PC (Polycarbonate Resin) material
  • Wall mounted design with optional top handle attachment
  • Operating temperature range: -20℃ to +75℃
  • Quick assembly and dismantling
  • Safe and reliable connections
  • Reusable components for extended service life
  • Suitable for indoor and outdoor applications
  • Robust construction for demanding environments
  • Easy handling and system integration
  • 24-month warranty on all parts and manufacturing defects
Product Overview
The 63 AMP wall mounted power distribution board is constructed from premium PC material in a wall-mounted configuration. The unit features direct cable connection through built-in terminals at the bottom, eliminating the need for an incoming plug. Outgoing connections include 2 * 5P 32A 400V IP44 panel mounted sockets, 3 * 2P+E 16A 220V IP44 Schuko sockets, and 1 * RJ45 network interface. All power distribution boards are built to order for specific application requirements.
Manufacturing Excellence
Zhejiang Hyper Electrical Supplies manufactures a comprehensive range of portable power distribution products under the "Syntax" brand name. Our components feature cutting-edge technology and are produced using state-of-the-art machining techniques. The CX series wall mounted distribution boxes are primarily designed for the events industry, providing essential power distribution requirements for successful installations.
Design Advantages
Space-Saving Modular Design
Allows multiple-tier, stacked use and efficient storage
Superior Weather Protection
IP65 rating ensures resistance to rain, sleet, snow, and external ice formation
Premium Material Quality
PC material offers optimal combination of lightweight construction, hardness, strength, and smooth finish
Applications
  • Tunnel construction and drilling rigs
  • Gravel pits and quarry operations
  • Marine and railway applications
  • Military and industrial facilities
  • Construction sites and event technology
  • Chemical plants and airport operations
  • Container terminals and harbor crane connections
  • Large-scale indoor and outdoor events
  • Market places and public venues
Industry Applications
Public Infrastructure: Urban rail transit, nuclear power stations, wind power stations, ports, docks, airports, tunnels, metro systems, bridges, roads, construction sites
Production & Processing: Metal processing plants, paper mills, cement plants, power plants, aluminum manufacturers, steel works, automobile factories, sewage treatment plants
Communication & Electronics: 4G/5G communication equipment, GPS systems, WiFi equipment, automated production lines
Entertainment & Civil: Concerts, stadiums, presentations, meeting centers, hotels, touring and film equipment, hospitals, schools, banks, shopping malls
Electric Vehicle Infrastructure: Electric car chargers, charger distribution boxes, intelligent charging systems
Custom Solutions
When standard solutions don't meet specific application requirements, we develop customer-specific solutions upon request. Our engineering team works closely with clients to create tailored power distribution solutions for unique operational needs.
